Description

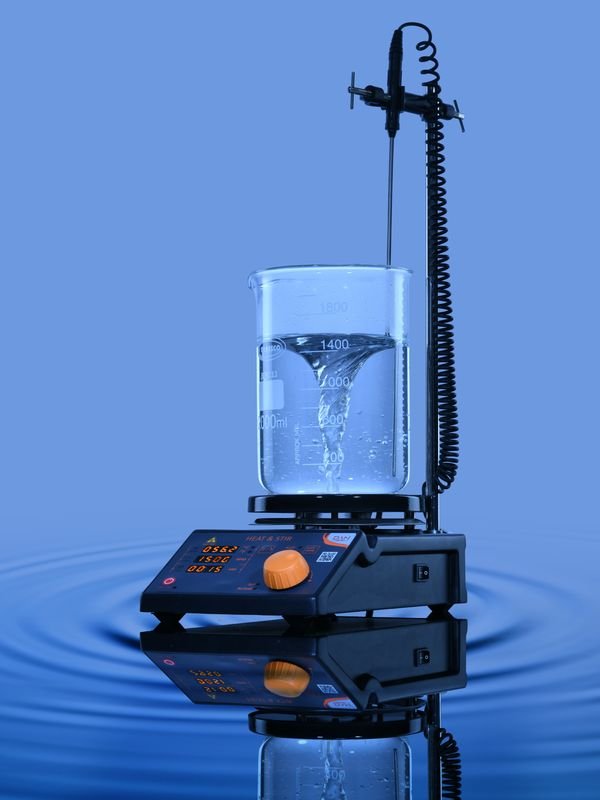

Ceramic Coated Stainless Steel Top PU coated aluminium alloy moulded body Single multi-turn intelligent knob operation Selection of hotplate or probe for temperature control Hot top indicator for user safety Adjustable temperature limit safety cut-off for top plate & probe Installed with double PT sensors for safety Timer indication of minutes & hours Set alarm for safety and ease of unsupervised operation Error code display for failures Smart recall of previous settings for quick setup Technical Specification: Heating plate material : Ceramic Coated Stainless Steel Dimension of heating plate : Ø 150mm Three display windows for : Temp., RPM and Time Speed range : 50 – 1500RPM Heat output : 650 W Heating capacity : 2 Ltr Stirring capacity : 20 Ltr Maximum Stirring bar Length : upto 80mm bar (at lower speed) Temperature range : Ambient to 350°C Approx. Adjustable safety cut off : 50 – 400°C Control accuracy of PT 100 : ± 1K Weight : 3.2 kg Permissible ambient temp. : 5 – 40°C Permissible relative humidity : 80% Dimension of hot plate : 273 x 160 x 102mm RS 232 interface : Yes (For Programming) Frequency : 50/60Hz Voltage : 230/115V DIN EN 60529 : IP 32
