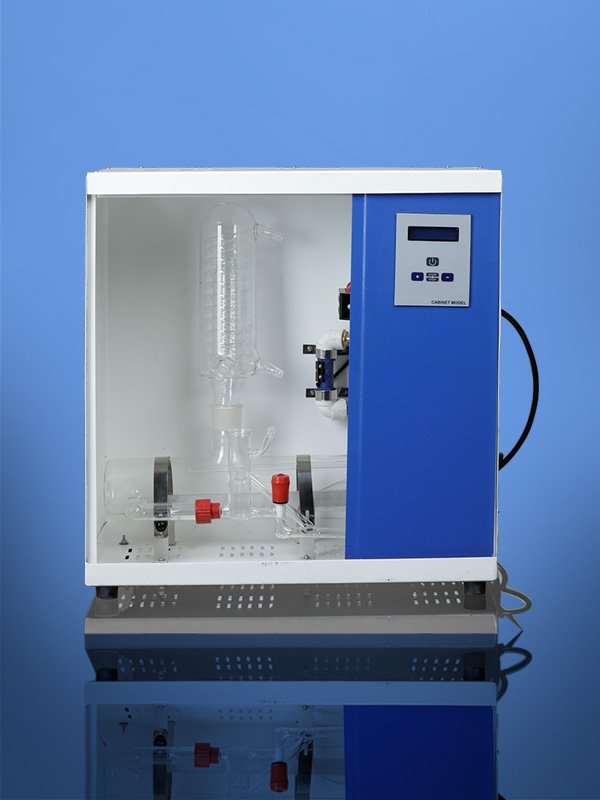

AUTOMATIC WATER DISTILLATION UNIT (CABINET STILL) New

Description

Key Features : Fully automatic water distillation equipment Can be used in research laboratories, hospitals etc Made from 3.3 exp borosilicate glass. Provides accurate values Microprocessor controlled LCD display Audible alarm for unsupervised operation Replaceable silica sheathed (Quartz) heater: fit ted on horizontal jacket Distillate temperature is around 25 to 45°C ensured by an efficient condenser. Metal stand is painted for rust free operation and lustrous appearance. Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy. Fuse is provided for safety in case of voltage fluctuation or short circuit. Boiler is provided with Teflon screw cork for easy draining and cleaning of boiling chamber. The front cover is easily removable making the access to the glass parts very easy. Electrical Power: 220/240 V, 50/60Hz, Single Phase Supply. Additional In-built Safety Features: Gate Valve: Conserves cooling water wastage in case of power failure. Flow Switch: Additional in-built safety feature for the equipment unit shut of f in case of cooling water failure. Temperature switch: The boiler is equipped with a safety temperature switch which shuts of f the unit if water level in the boiler falls below the heater, thus saving the glass parts from any damages. Level Sensor: It shuts of f the distillation equipment if the water level in the boiler falls below the heater. Reservoir Level Sensor: this helps in automatic working of the water distillation equipment. Depending on the water level in the reservoir it will automatically switch On/Off the equipment, thus saving energy. (Reservoir can also be provided with a storage capacity of 5 ltr, 10 ltr & 20 ltr made of Borosilicate Glass or polypropylene) Spares for above Distillation Item Code Output Capacity Ltr./Hr Description Pack of GLCM-20BCS 2 Boiling Chamber with Leveller for GLCM-20S &GLCM-20D 1 GLCM-40BCS 4 Boiling Chamber with Leveller for GLCM-40S &GLCM-40D 1 GLCM-20BCC 2 Coil Condenser for GLCM-20S & GLCM-20D 1 GLCM-40BCC 4 Coil Condenser for GLCM-40S & GLCM-40D 1 Accessories for above Distillation Item Code Output Capacity Ltr./Hr Description Pack of GLSI-SH-HS 2 Silica Sheathed (Quartz)Heater for GLCM-20S, GLCM-40S, GLCM-20D & GLCM-40D 1
