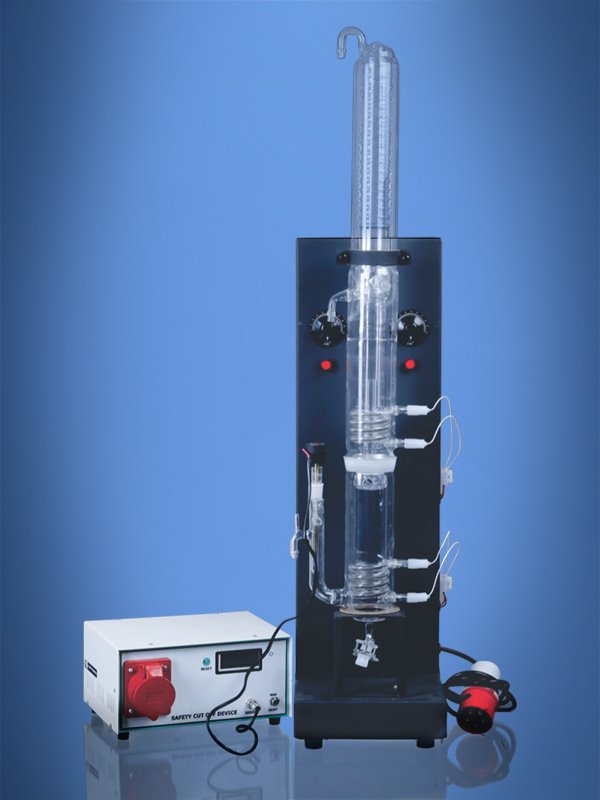

All Quartz, Double Stage, Water Distillation Unit, Vertical Model, including Safety cutoff

Description

Unit has been designed keeping in view customer requirements and easy serviceability of the equipment. Unit consists of : Lower boiler with inbuilt heater enclosed in a quartz boiler with a cup on top. Demountable upper boiler with built in quartz coil and condensing unit mounted on the boiler with the help of ball and socket joint Double walled condenser ensures separate condensation of vapors coming from the two boilers using a single cooling circuit Unit mounted on a specially designed metal stand and is also provided with automatic safety Control Unit Double Distillate Quality: Parameters Values Specific Conductivity 0.1 us/cm Biological Activity (distillate quality) Pyrogen Free Organic Matter NIL Total Solids 0.1 mg/ltr * We recommend a Quartz Reservoir For storage of High purity water. * All Parameters are under standard test conditions Spare Parts for above: Item Code Output Capacity ltr./Hr Description Pack Of GLDD-15AQ-PB 1.5 Quar tz Primary Boiler 1 GLDD-25AQ-PB 2.5 Quartz Primary Boiler 1 GLDD-40AQ-PB 4 Quartz Primary Boiler 1 GLDD-50AQ-PB 5 Quartz Primary Boiler 1 GLDD-15AQ-SC 1.5 Quartz Secondary Boiler 1 GLDD-25AQ-SC 2.5 Quartz Secondary Boiler 1 GLDD-40AQ-SC 4 Quartz Secondary Boiler 1 GLDD-50AQ-SC 5 Quartz Secondary Boiler 1 GLSI-SCU-15AQ 1.5 Safety Cut-off Device 1 GLSI-SCU-25AQ 2.5 Safety Cut-off Device 1 GLSI-SCU-40AQ 4 Safety Cut-off Device 1 GLSI-SCU-50AQ 5 Safety Cut-off Device 1
