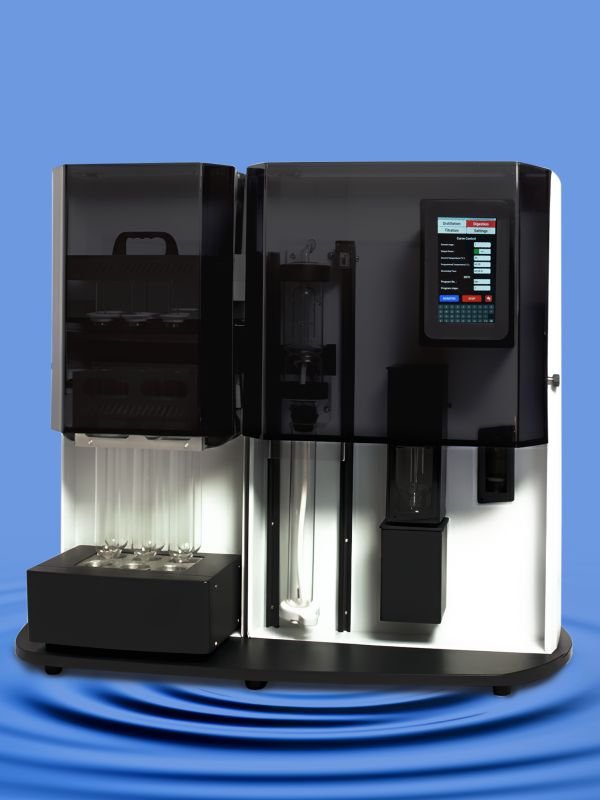

Advanced 3-in-1 Nitrogen Analysis System

Description

INTEGRATED WORK STATION FOR NITROGEN ESTIMATION Advanced 3-in-1 Nitrogen Analysis System integrating Digestion, Distillation, and Auto Titration in one compact platform. 7-Inch Capacitive Full-HD Touch Display with a modern GUI interface for seamless control and real-time process monitoring. Independent Digestion Operation that runs without any requirement from distillation or titration systems. Distillation & Titration – Selectable but Dependent: Both can operate individually; titration requires distillation output; ensures accurate Distillation → Titration sequence. Parallel Workflow Capability allowing digestion to run independently while distillation and titration proceed automatically in order. Semi-Automatic Reagent Handling with automatic suction and feeding of reagents during operation. Inbuilt Scrubber: Absorbs digestion fumes for safer, cleaner operation. Separate Containers for All Reagents: Diluent, Alkaline Solution, Boric Acid, Titrant, and Titration Color/Indicator. Large-Capacity Reagent Bottles for extended operation with minimal refilling frequency. Auto Scrubber Water Drain & Refill after every digestion cycle for consistent performance and reduced manual work. Auto Steam Generator Refill with proximity-based water level sensing for safe and uninterrupted distillation. High-Efficiency Steam Generation for faster recovery, consistent distillation output, and reduced energy usage. Precision Auto Titration System with accurate endpoint detection and stable titrant dispensing for repeatable results. Chemical-Resistant Tubing & Components designed for long-life operation even in harsh laboratory environments. Low Maintenance Design with easy-to-access service areas and tool-less assembly for cleaning and tubing replacement. Smart Error Detection with alarms for low water, low reagents, temperature faults, and system abnormalities. Over-Voltage, Over-Temperature & Dry-Run Protection ensuring operational safety. High-Temperature Resistant Digestion Block for uniform heating and long-term durability. Energy-Optimized System for reduced power consumption without compromising performance. Flexible Operation Modes: Digestion Only Distillation Only Titration Only (after distillation) Distillation + Titration Combined Full Cycle (Digestion → Distillation → Titration) Designed for Heavy-Duty Laboratory Use with reliability suited for routine daily nitrogen analysis. Compact & Modular Architecture that fits easily in modern lab setups and simplifies servicing. Multiple Program Storage: Supports saving multiple digestion, distillation, and titration programs internally. USB Backup & Restore: Users can export (download) all programs to a USB drive and import (load) programs from USB for quick setup, sharing, or recovery. Remote Monitoring & Control: Optional Labs Connect module enables secure internet-based access to start/stop operations, view live status, check errors, and monitor digestion/distillation/titration progress remotely. Multiple Program Storage: Supports saving multiple digestion, distillation, and titration programs internally. USB Backup & Restore: Users can export (download) all programs to a USB drive and import (load) programs from USB for quick setup, sharing, or recovery. Remote Monitoring & Control: Optional Labs Connect module enables secure internet-based access to start/stop operations, view live status, check errors, and monitor digestion/distillation/titration progress remotely. Specifications: Digestion Capacity: 6 tubes Compatible Tube Sizes: 42 mm OD, 300 mL Kjeldahl tubes Temperature Range: Ambient to 450 °C Temperature Accuracy: ±1 °C Heating Module Material: Aluminium alloy high-temperature block Temperature Control: PID-based point and curve control Construction: High-temperature digestion block with chemical-resistant pathways Auto Scrubber: Automatic drain and refill after each digestion cycle Distillation Analysis Scope: 0.1 – 240 mg N Precision (RSD): ≤ 0.5% Recovery: 99 – 101% Steam Generator: High-efficiency design with automatic water refill Cooling System: High-efficiency condenser Cooling Water Consumption: 1.2 – 3.0 L/min Safety Features: Over-temperature and dry-run protection Titration Type: Automatic acid–base titration Accuracy: ±0.1% Endpoint Detection: Colorimetric Dispensing Mechanism: High-precision piston-based titrant delivery system Dispense Resolution: 0.01 mL Repeatability: High stability due to closed piston chamber and micro-step motor control Reagent System Separate containers: Alkali, Diluent, Boric Acid, Titrant, Indicator Semi-automatic reagent suction & feed Chemical-resistant tubing Power: 220–240 VAC, 50/60 Hz, 4.7 kW Related Guides:– What is a Nitrogen Analyzer
