Description

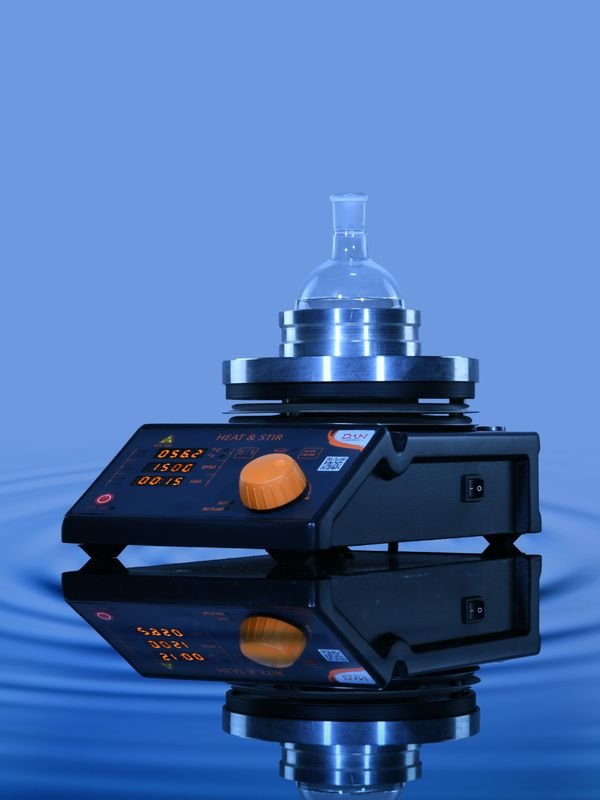

Alluminium Alloy Ceramic Coated Top PU coated aluminium alloy moulded body Single multi-turn intelligent knob operation Selection of hotplate or probe for temperature control Hot top indicator for user safety Adjustable temperature limit safety cut-off for top plate & probe Installed with double PT sensors for safety Timer indication of minutes & hours Set alarm for safety and ease of unsupervised operation Error code display for failures Smart recall of previous settings for quick setup Compatible aluminum adapters from all products Technical Specification: Heating plate material : Ceramic Coated Stainless Steel Dimension of heating plate : Ø 150mm Three display windows for : Temp., RPM and Time Speed range : 50 – 1500RPM Heat output : 650W Heating capacity : 2 Ltr Stirring capacity : 20 Ltr Max. stirring bar length : upto 80mm bar (at low speed) Temperature range : Ambient to 350°C Approx. Adjustable safety cut off : 50 – 400°C Control accuracy of PT 100 : ± 1K Weight : 3.2 kg Dimensions : 273 x 160 x 102mm Permissible ambient temp. : 5 – 40°C Permissible relative humidity : 80% RS 232 interface : Yes (For Programming) Frequency : 50/60Hz Voltage : 230/115V DIN EN 60529 : IP 32
