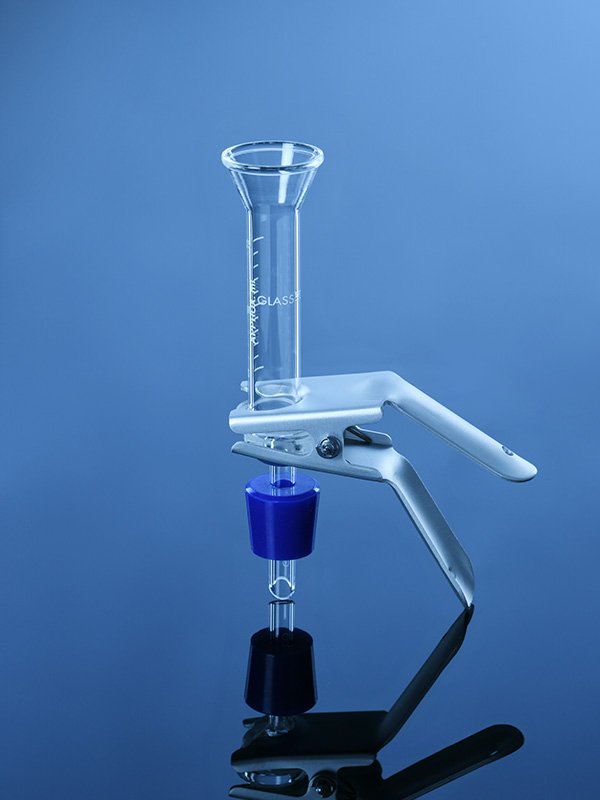

Glass Microanalysis Filter Holders For 25 mm Disc Filters with stainless steel screen support

Description

APPLICATIONS: Used to filter under vacuum/small volumes for particulate or biological contamination analysis Available in fritted glass or stainless steel Thick prefilters or laminated filters will not seal in this holder Use Durapore (PVDF) membrane or unlaminated PTFE for solvent applications with this apparatus SPECIFICATIONS: Borosilicate glass funnel and base; removable stainless steel screen filter support; anodized aluminum spring clamp; silicone stopper Filter Diameter 25mm Filtration Area cm 2 2.5 Funnel Capacity, 15ml Outlet Fitting Dimensions : No. 5 perforated silicone stopper mounts in standard 125 ml filtering flask Height, 15.2 cm Diameter, 2.5 cm Replacement Parts: Cat. No. Description Price/Piece 259.245.01 Funnel,15 ml, borosilicate glass 1525 259.245.03 Spring Clamp, 25 mm, aluminum 1890 259.245.05 Base stopper & stainless steel screen 2020 259.245.06 No. 5 perforated stopper, silicone 275 259.245.07 Gaskets, Teflon 95 259.245.08 Support Screen, 25 mm, stainless steel 675 Optional Accessories: Cat. No. Description Price/Piece 259.245.04 Vacuum filtering flask, 125 ml 1000
