Description

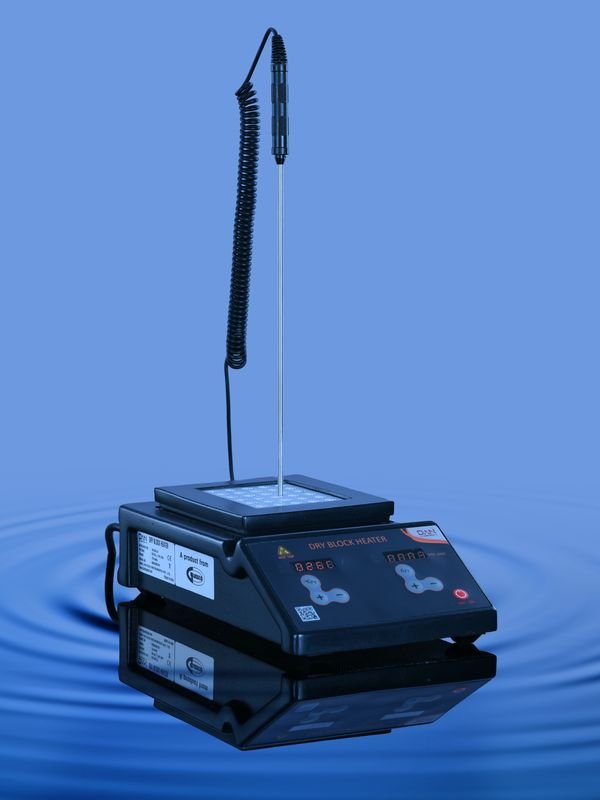

DRY BLOCK HEATER PU coated aluminum alloy moulded body Provides precise temperature control in small vessels Highly versatile with a large number of blocks Hot top indicator for user safety Installed with PT probe for safety Inbuilt temperature sensor for outstanding accuracy and control Timer option Technical Specification : Number of blocks : 1 2 Heat output : 170W 340W Heating temperature range : 120°C 120°C Temperature display : YES YES Adjustment & display resolution : 1K 1K Connection for ext. temp probe : DIN DIN Temperature sensor : PT 100 PT 100 Set-up plate material : Aluminium alloy Aluminium alloy Set-up plate dimensions : 95 x 76 x 51mm 95 x 76 x 51mm x (2 block) Fixed safety circuit : 130°C 130°C Timer : YES YES Time setting range : 1-5999 1-5999 Counter : YES YES Counter setting range : 1-5999 1-5999 Dimensions : 160 x 80 x 71mm 163 x 106 x 332mm Weight of body : 2.8 kg (Approx.) 2.9 kg (Approx.) Permissible ambient temp : 5 – 40°C 5 – 40°C Permissible relative humidity : 80% 80% Voltage : 230/115V 230/115V Frequency : 50/60Hz 50/60Hz DIN EN 60529 : IP 21 IP 21
